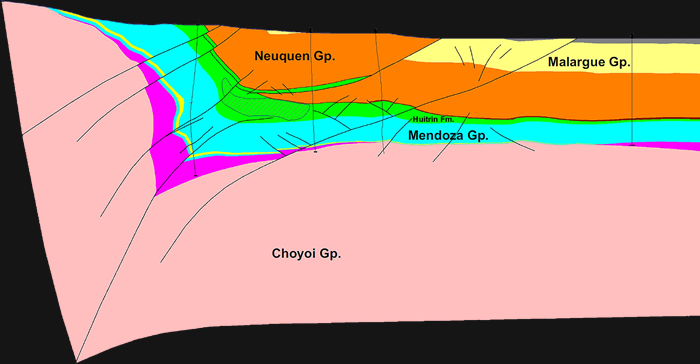

Structural model validation to refine prognosis of exploratory well; Neuquen Basin, Argentina (Witte et al., 2011).


Kinematic 2D Model (compressional, thick-skinned).

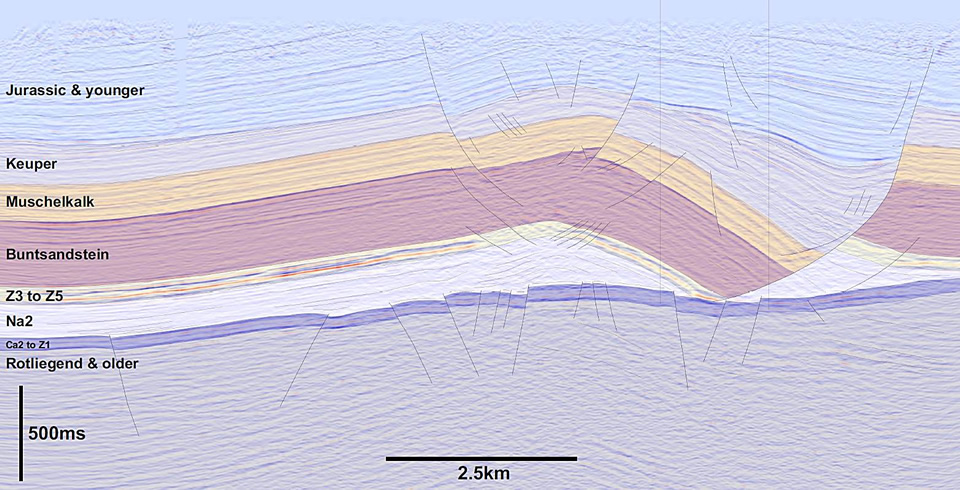

Prospect-scale cross-section, Zechstein Basin, Germany (Witte et al., 2013).


Kinematic 2D Model (multi-phase, superimposed thin- & thick-skinned).

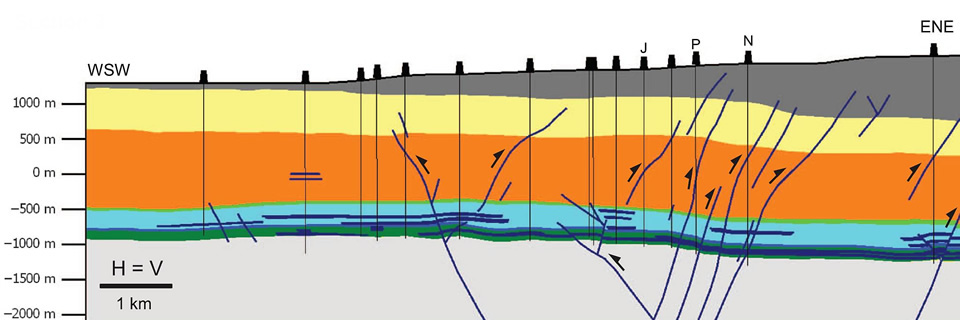

Field-scale cross-section of the Los Cavaos oil field, Argentina (Witte et al., 2012).

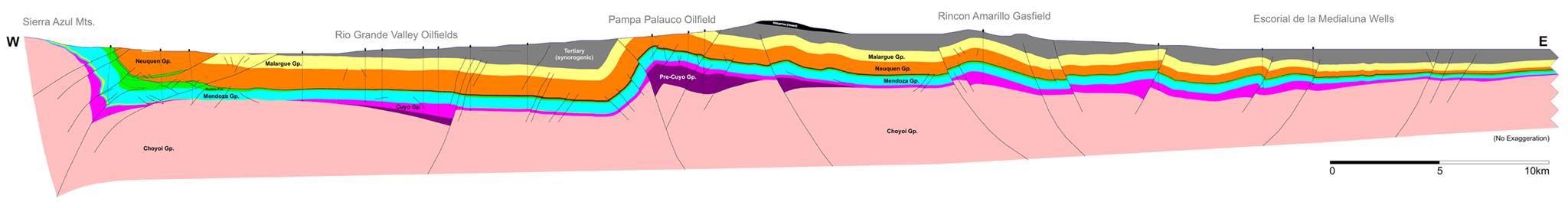

Regional cross-section through the northern Neuquén Basin, Argentina (Witte et al., 2011). click image to enlarge.

Serial cross-sections through the Santiago Basin, Peru (Witte et al., 2011).

Kinematic 2D Model (compressional, thin- & thick-skinned).

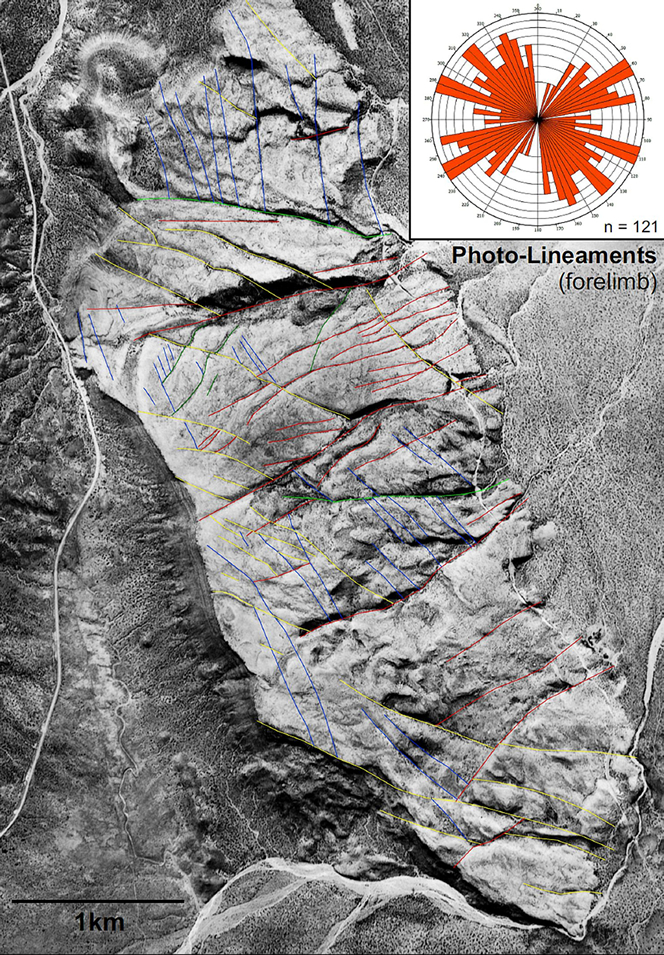

Air photo with lineament analysis (left) and fracture index from outcrop data (right), Malargue Anticline, Neuquén Basin, Argentina (Witte, 2014).

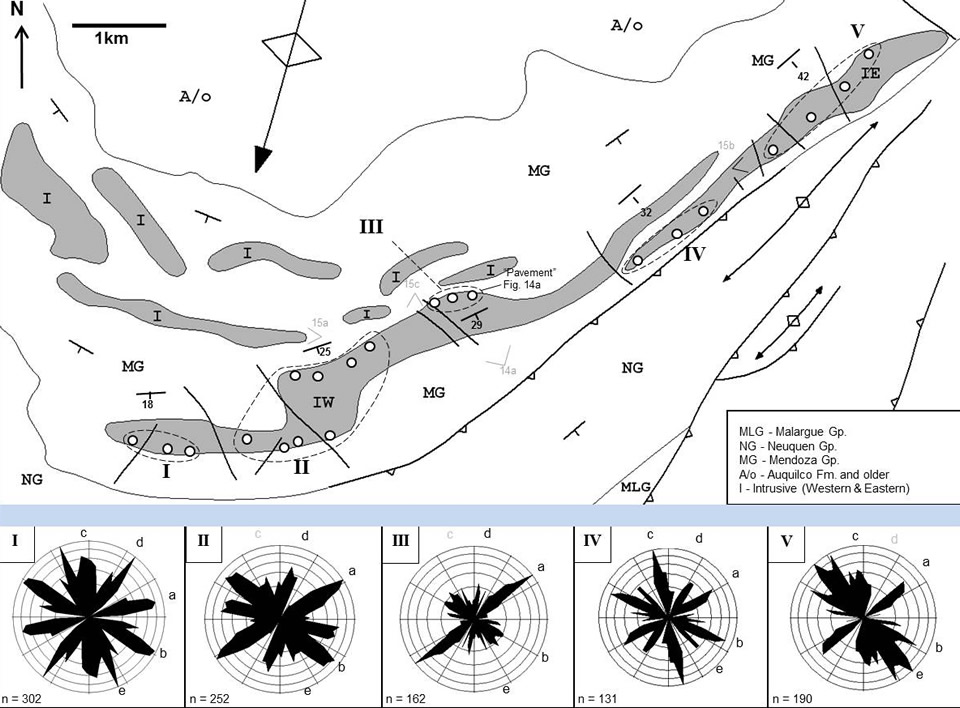

Fracture orientations in igneous reservoirs (grey) from outcrop, Sierra Azul, Neuquén Basin, Argentina (Witte et al., 2012).

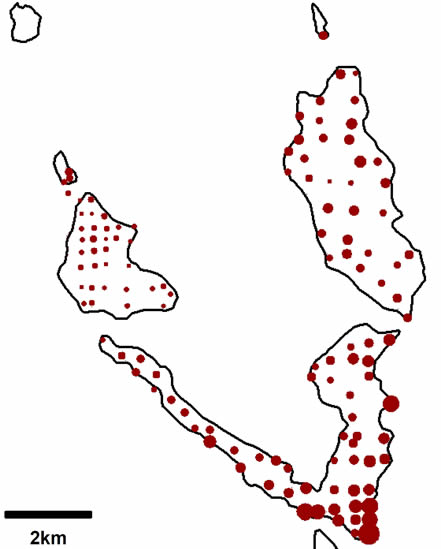

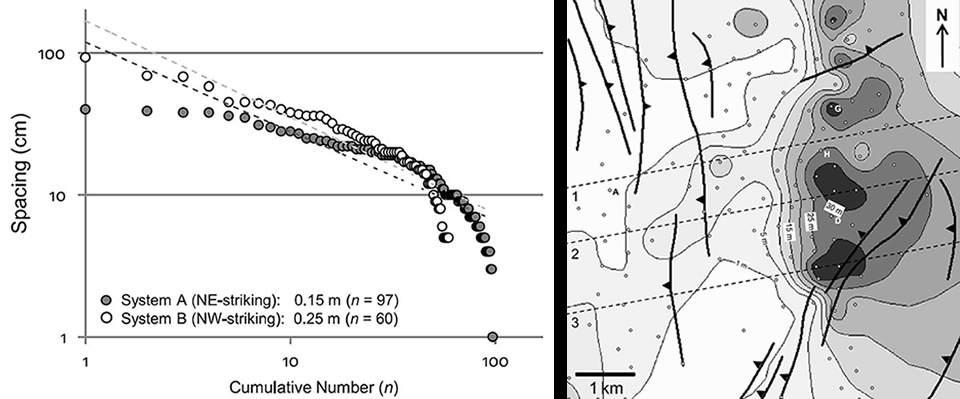

Fracture spacing (outcrop data) from igneous reservoirs, Sierra Azul (left); sill thickness map and well locations (right),
Rio Grande Valley, Neuquén Basin, Argentina (Witte et al., 2012).

3D Earth Model (compressional, thin-skinned, salt-tectonics).


Lineament interpretation of digital terrain data, Ucayali Basin, Peru (Witte et al., 2013).
